YHE-997S INTELLIGENT HEALTH CARE COMMUNICATION SYSTEM

Yarward hard wire nurse call bell system is designed for providing the communication between patients in wards and medical personnel in nurses offices in case of any peculiar conditions in hospitals. With cast-into-once deluxe plastic master telephone hosing, innovative summary fixed mode, complete information electronic summary and audio number reporting system, it has higher performance-cost ration than those products of the same variety.

1. Adopting two-wire system networking, integrated the power supply line, data signal line and acoustic signal wire into one wire with two cores.All the sub stations are parallel connected in to the bus and whole system only need one two-core bus bar.

2. Patient list design with bed UI interface design, support inpatients number statistics.

3. Call and talkback, support master host and substation unit two way call, no need transfer.

4. Online number function: support online bedsides substation number setting and modify. Support online bath station and corridor lights number setting.

5. Sub stations related setting. Support bedside station and bath station correlated with corridor light, ward number. When sub stations call, these related devices will also show alarm.

6. Call recording: when sub stations call and no host responding, the host will record this number and indication according call sequence.

10. Voice number broadcast function: voice broadcast the ward number,bed number, nursing level and support volume setting by period.

7 High level priority: system supports nursing level adjustment and the higher nursing level is priority call and display

Hospital nurse call bell system System networking diagram

Function A 25-color LED light is used to indicate the level of patient nursing level.Nursing level colors can be configured systematically.

The handle adopts magnet adsorption design, which not only meets the reliability requirements, but also facilitates daily cleaning and wiping.

The number of hospital ward and hospital bed can be displayed and broadcast by voice. The number of broadcasting can be adjusted. Two broadcasting methods, namely circulation broadcasting and interval broadcasting, can be supported.

Can initiate a voice call to a patient terminal, two-way intercom operation.

Support independent broadcast function, can choose any bed through the screen for microphone broadcast function, convenient for all kinds of propaganda and education operations.

The list of beds can be displayed in standard mode and simplified mode.Simplified mode can show more beds at the same time, while standard mode can visually show more information content.

Support call intercom, call display, call not processed reminder and one-key clear and other functions.

The call volume of the automatic adjustment system is provided with 4 periods, each period of time can be flexibly adjusted.

It has functions of circuit detection, fault alarm, fault patrol and work log.

The device supports the online upgrade function, and the program can be upgraded through the server.

Nursing call bell system Composition Parts:

So far, two -wire and four-wire systems are available. It consists of host, bed extension, corridor display, door lamp, emergency call bell, secondary host as well as optional modules(including music, bathroom extension) for realizing some peculiar functions.

1) The advanced two-wire networking technology

2) Intelligent call with high coverage

3) Striking electronic nursing identification

4) Easily recognizable color key scheme

5) Advanced information interaction platform

6) Practical application of wireless nursing communication

7) Professional software management platform

Networking scheme

HIS system can be connected to realize information reading and publishing.

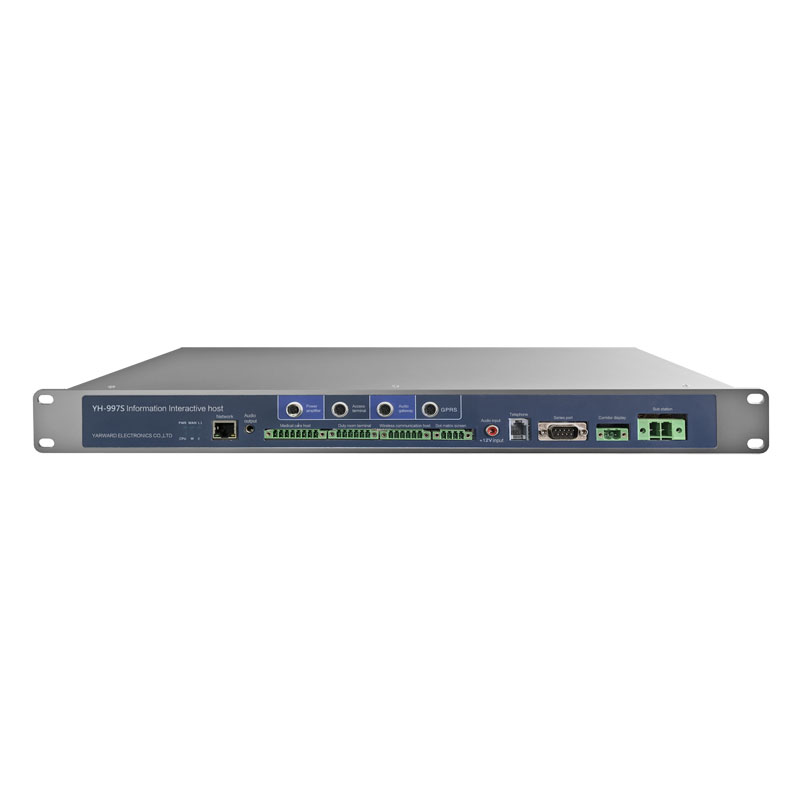

Centralized Control Center of Power supply for Two-wire system.

Professional voice call communication effect, support for extended external.

Support extended general-purpose telephone with call intercom and caller ID.

Support extended standard CAN, 485 communication peripherals to provide secondary development interfaces.

Multi-protection circuit system with lightning protection, surge protection, short circuit protection, grounding protection, overload protection, etc.

Automatic networking can be used through the internal bus cascade, to achieve a large area of wireless coverage.

Support to mount multiple mobile medical extensions, wireless call buttons, and other wireless terminals.

Support two-way wireless data transmission.

Support two-way wireless data transmission. Through communication with the calling system host, the function of the intercom is realized.

Visual Nurse Call Light Systems from Yarward nurse call system will provide your clinic with a flexible and dependable communication tool. Our call systems for the patient and outpatient monitoring provide reliable information, fast emergency communication, and enable efficient response times.

Start with the basic system, which includes a Corridor Light and a Room Status Station (with three lighted buttons indicating up to six conditions with a steady or flashing light), then build from there.



Ip nurse call system Features

* Act as management center that can be linked to PC with Windows software suitable for hospital, where internal communication is needed and is easy to be operated.

* The Master Host can support extensions (Included bed extension, door extension, bathroom extension); Windows software will record and check patient’s information.

* Nurse extension can broadcast for ward area.

* Bath Extension can receive the signals of nurse arriving and ward inspection.

* Door Extension equipped with multicolour door lamp, can indicate different situation with different colour.



Why Choose YARWARD Medical Company?

The Advantages We Have For Hospital call System:

1, Attend Domestic and Foreign Medical exhibition Every Year, acknowledge the newest industry development.

2, Have a Good Relationship with Designing Institute Worker, Providing Satisfied Hospital Engineering Design.

3, 5 Steps Quality Controlling System to Ensure High-Quality Products.

4. Fast Manufacturing Period, 3-5 Days After Receiving Payment.



Established in 1998, YARWARD ELECTRONICS CO., LTD always focuses on Healthcare and medical interactive application solutions. Now we are the main providers of domestic healthcare communication systems. Five product series includes the Smart ward, Smart clinic, Smart senior care, mobile healthcare, and Nurse Communication systems now are offering to China more than 7,500 hospitals and more than 3.8 million patient beds.

In 2020, Yarward Nurse Call Systems ranked seventh in the world in terms of product sales and first in China
