YHE-997S nurse call system
Paging and Emergency Code Blue Systems
Nurse Call Systems
Yarward is the leading systems integrator supplying Nurse Call Systems to area hospitals, medical office buildings, clinics and long term care facilities. The product line spans the entire family of Nurse Call products from very simple light systems to sophisticated centralized computer based reporting systems.
Paging and Emergency Code Blue Systems
Standard ceiling paging systems, pocket paging and zone paging are routine projects for Comtel. Code Blue Systems with annunciation at the switchboard are included in our select hospital systems capability.
Security
Yarward knows how crucial security is in the healthcare arena, to protect both people and assets. We select from a broad range of manufacturers to design systems meeting your needs for Access Control, Video Surveillance, Alarm Detection, Emergency Phones, and Area of Refuge. We also provide infant protection, wandering patient systems, and asset protection.
Intercom Systems
Special intercom systems with “handsfree” features and telephone interface are necessary between certain departments such as surgery, the laboratory, radiology and emergency. Yarward has a select group of intercom products that address these unique medical requirements.
Centralized and Elapsed Clock Systems
Yarward supplies both centralized clock systems for the entire building and elapsed time clocks for areas such as ICU, CCU and Emergency.

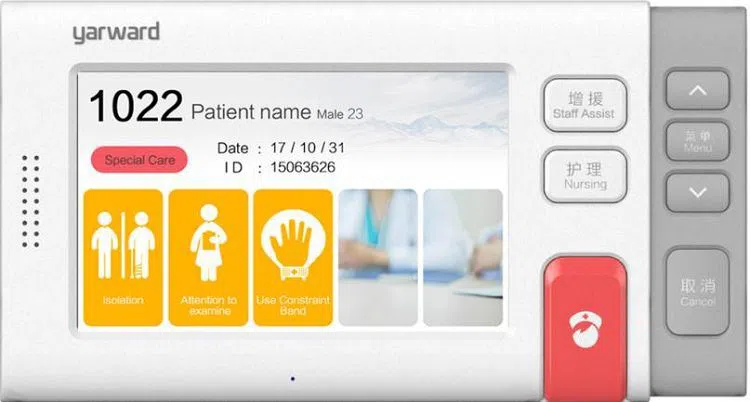

Bedside extension
Product model YHE-6257

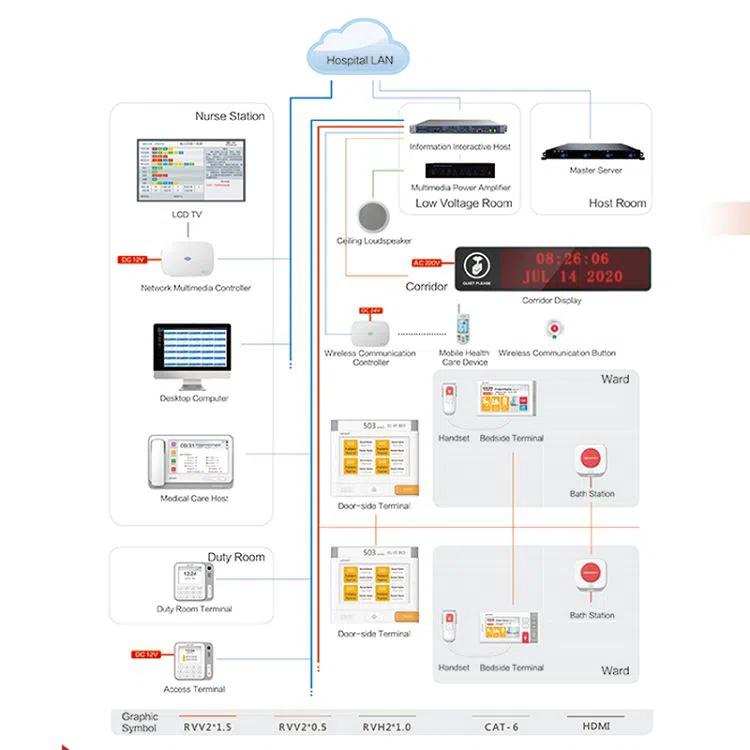

Networking wiring
A two-wire network is used, that is, power line, data line and voice line, which share a two-core wire. The cable specification is RVV2×1.5mm 2 , and the extension number and broadcaster can be encoded online.
Display screen Adopt 5-inch LCD screen with a resolution of 800*480,and 16M true color
Call switch
Hand-held call switch, can be used to call, intercom, control flashlight, with strong magnetic base
Major function
Can display patient’s name, age, nursing grade, nursing reminder, general information such as responsible doctor, responsible nurse profile and doctor’s photo.
Screen display time (bright screen time) can be set uniformly by the nurse station to avoid affecting the patient’s night rest. When the screen is off, it can be illuminated by touching the screen.
Support call with the host in the nurse station
Support reinforcing calls, reset function
Support nurse location to display and record the nurse’s ward number
Support call transfer, can receive call information from other rooms, support mobile medical and nursing extension to achieve voice call with it
Support drug dressing call, can directly prompt the nurse’s dressing information
Support oxygen timing, can automatically record the duration of oxygen intake and alarm timing
Support for voice alerts such as new short messages, call waiting, medication, payment, etc.
Support satisfaction evaluation of nurses
The text of the patient’s information interface scroll displayed, or lot text
Displaying upward or left.
Patient Information Interface support for displaying multiple images at the same time, used to display nurses’ avatars, nursing logos, QR codes, etc.
Any text block in the patient’s information interface can be flashed, and text and background can be specified as display colors
The table inner menu of the bedside extension machine can be customized, each table can save 5000 records, up to 100000 characters, can quickly turn the page and view
Bedside extension can realize independent timing mission function without affecting other extension work. You can turn it off manually, you can play multiple audio continuously, you can specify a time period
Can adjust the style and content of the patient information interface according to the demand, can display up to 5 patient information interface at the same time, can switch view manually, can specify one of them as the normal standby interface
Extension program, material support online upgrade
We would be delighted to give you a demo of our nurse call system.
